Processing results
Once the energy network has been optimized, the next step is to collect and visualize the results. The results can be saved into an excel file so that they could be analysed later without the need to perform optimization again.
Moreover, optihood features several useful plotting methods for visualizing the selected technologies, detailed energy flows and energy balance across the network.
Saving the results
The optimization results can be saved into an excel file using the exportToExcel
function of the EnergyNetwork class:
# save results
network.exportToExcel("results.xlsx")
The absolute path of the results excel file should be specified in exportToExcel
function call.
Moreover, the following additional functions could be used to print some of the optimization results such as the capacities selected by the optimizer for different components, total cost and environmental impact of the energy network:
network.printInvestedCapacities(capacitiesTransformers, capacitiesStorages)
network.printCosts()
network.printEnvImpacts()
capacitiesTransformers
and capacitiesStorages
are returned by the optimize function of the EnergyNetwork class (For
more details look at Optimizing the energy network).
Result visualization

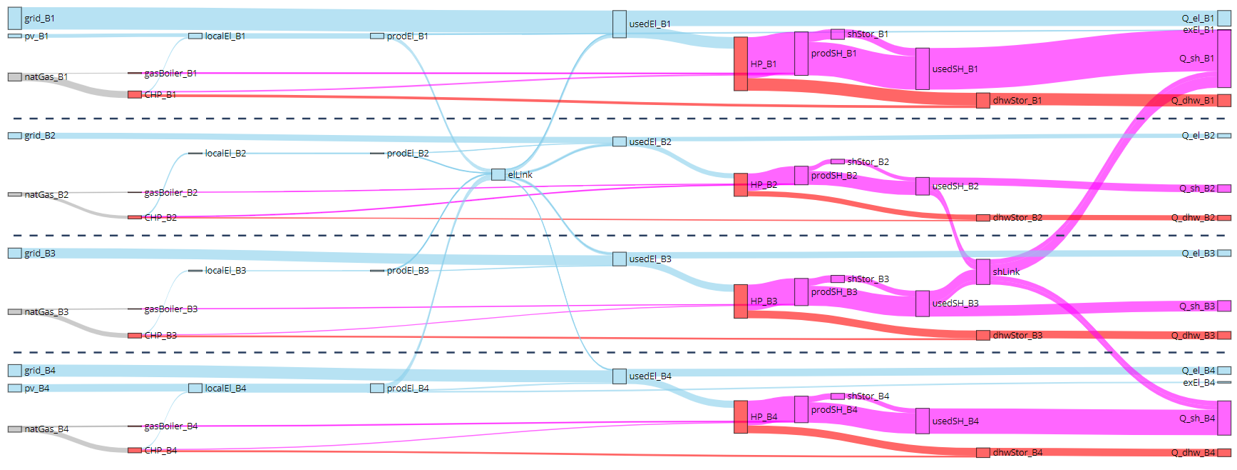

The results can be visualized at different levels of detail, for example a sankey diagram of the energy network summarizes the capacities of the technologies selected and the annual energy flows between different components, while a detailed plot could be made for visualizing the hourly electricity flows to/from Building 1.
To view the sankey diagram summarizing the optimization results, the plotting functions defined in optihood.plot_sankey
should first be imported. plot
function could then be used to obtain the interactive sankey diagram:
# import plotting methods for Sankey
import optihood.plot_sankey as snk
...
numberOfBuildings = 4
...
UseLabelDict = True # a dictionary defining the labels to be used for different flows
snk.plot("results.xlsx", "sankey.html", numberOfBuildings, UseLabelDict)
The plot
function requires four parameters: the absolute path (including filename) of the results excel file, filename for
the sankey diagram, number of buildings and a boolean specifying whether or not the label dictionary should be used. The label
dictionary is defined in labelDict.py. Note that
if useLabelDict
is set to True, the label for each flow should be defined in labelDict.py, otherwise there will be an error.
The detailed energy flows can be visualized using the plot_functions
library of optihood:
# import the plot_functions library
import optihood.plot_functions as fnc
...
plotLevel = "allMonths"
plotType = "bokeh"
flowType = "electricity"
fnc.plot("results.xlsx", figureFolderName, plotLevel, plotType, flowType)

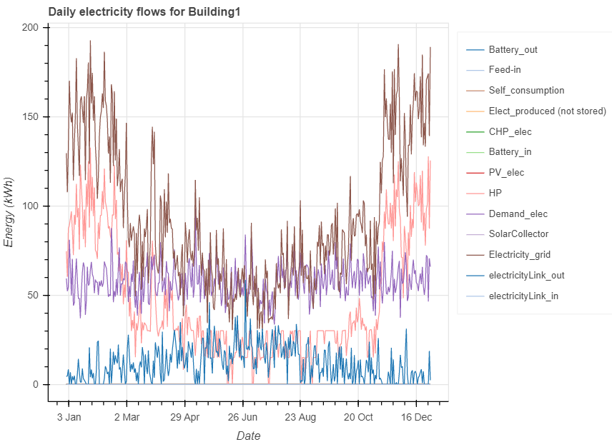

optihood provides two types of detailed plots: interactive bokeh plots for visualizing the energy flows and the monthly
balance plots to check the energy balance across each flow. Accordingly, plotType
can be selected as either 'bokeh'
or
'energy balance'
. plotLevel
can be set to either 'allMonths'
(for the entire year) or a specific month (three letter
abbreviation of the month, example: ‘Jan’, ‘Feb’, ‘Mar’, etc.) or a specific date in the format ‘YYYY-MM-DD’. Note that
if the plotType
is 'energy balance'
, the plotLevel
should be set to 'allMonths'
since the energy balance is made only
at a monthly level. The interactive bokeh plots are illustrated at both hourly and daily resolutions. flowType
could be
set to 'all'
, 'electricity'
, 'space heat'
or 'domestic hot water'
to plot the respective energy flow.
figureFolderName
is the path of the folder where the figures would be saved.

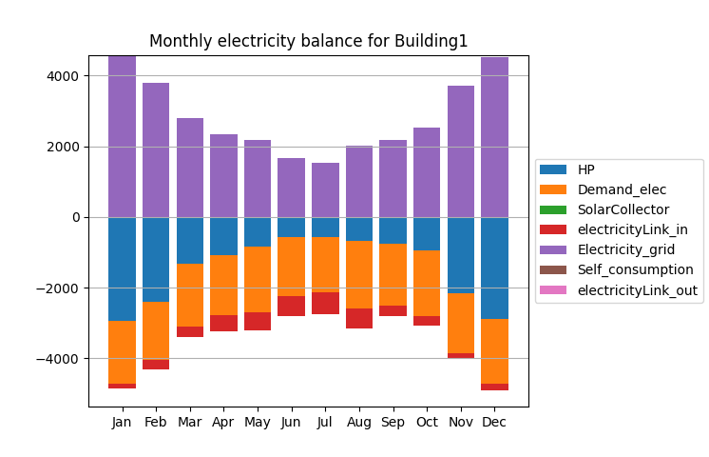

Moreover, the monthly energy balance could be checked for each flow.
